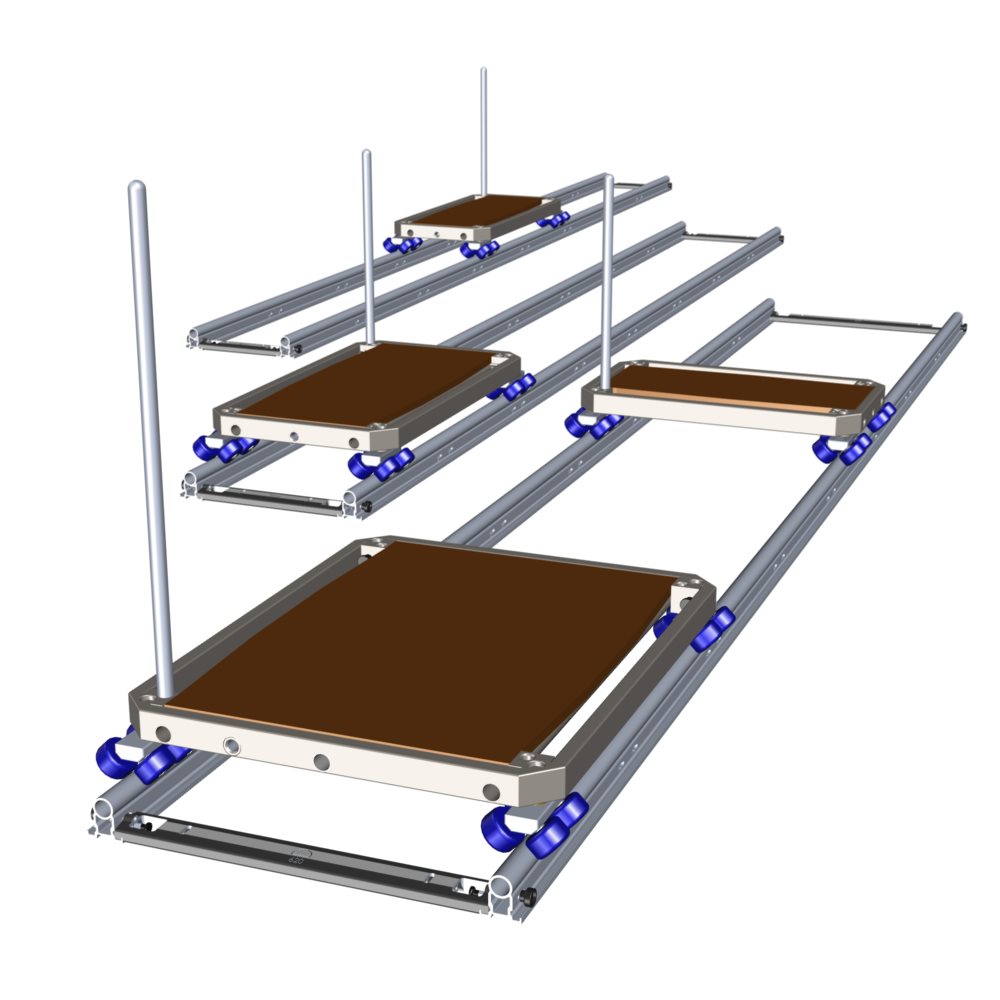

Basic, durable and strudy Small Platforms Range.

CQN Development Small Platforms offer a perfectly flat top deck. Each side of the Platforms are open, offering easy manual handling and large strap rigging zone.

Small Platforms are produced with a push bar docking slots on each corner, allowing comfortable control on the platform move. 2 more docking slots are provided inside the body frame allowing push bars storage. By the way, the push-bars can be used  as handle to facilitate the manipulation on the set.

Small Platforms are designed to slide on 2 different tracks gauge depending the side faced to the tracks (front way or side way) > More information

The CQN Development Skate Wheels keep the platform at it lowest position offering low riser platform and a great stability. The precise wheels alignment allows smooth & fast moments.

Small Platform 620×800 specifications

  • Tracks gauges compatibilities: 620 / 800mm >more information
  • Ext dimensions: 880 x 700 x 50mm
  • Weight: 19kg
  • Max Payload: 300kg

Product Ref: PCH020

Small Platform 407×800 specifications

  • Tracks gauges compatibilities: 407 / 800mm >more information
  • Ext dimensions: 880 x 485 x 50mm
  • Weight: 16kg
  • Max payload: 300kg

Product Ref: PCH030

Small Platform 407×800 specifications

  • Tracks gauges compatibilities: 407 / 800mm >more information
  • Ext dimensions: 880 x 485 x 50mm
  • Weight: 16kg
  • Max payload: 300kg

Product Ref: PCH030

Small Platform 320×620 specifications

  • Standard Tracks / MonoTracks gauges compatibilities: 320 / 620mm >more information
  • Ext dimensions: mm
  • Weight: kg

Product Ref: PCH050

Skate Wheels

  • Mount on any CQN Development Platforms
  • Mount on any CQN Development Hi-hats > Hi-hats page
  • Mount on any CQN Development bazooka (adapter needed) > Bazooka page
  • Wheels diam.: 60mm
  • Docking spigot diam.: 25mm

2 Skate Wheels Product Ref: PCH100

Self Adjustable Skate Wheels

Specific wheels for curved tracks.

  • Mount on any CQN Development Platforms
  • Mount on any CQN Development Hi-hats > Hi-hats page
  • Mount on any CQN Development bazooka (adapter needed) > Bazooka page
  • Wheels diam.: 60mm
  • Docking spigot diam.: 25mm
  • Adjustable range: 40mm

2 Self Adjustable Skate Wheels Product Ref: PCH101

Push-bar

  • Mount on any KGS Dev. Platforms
  • Length: 700mm
  • Diam.: 25mm
  • Screew: m20

Product Ref: CCH005
