Precision Aluminum Straight MonoTracks

Modular
The CQN Development MonoTracks is a “modular track system concept” based on simple tracking tubes joined by removable sleepers.
The sleepers come in a range of different lengths to ensure precisely the width of the track required
The MonoTrack pipes are joined together by the “self alignment connector” providing a height precision track alignment and smooth connection.
MonoTrack tubes are symmetrical and designed to hold sleepers with 4 simple fixing processes: mounted, locked, fixed or screwed.
The assembly of the CQN Development MonoTracks is achieved very fast and adapted to any shot.

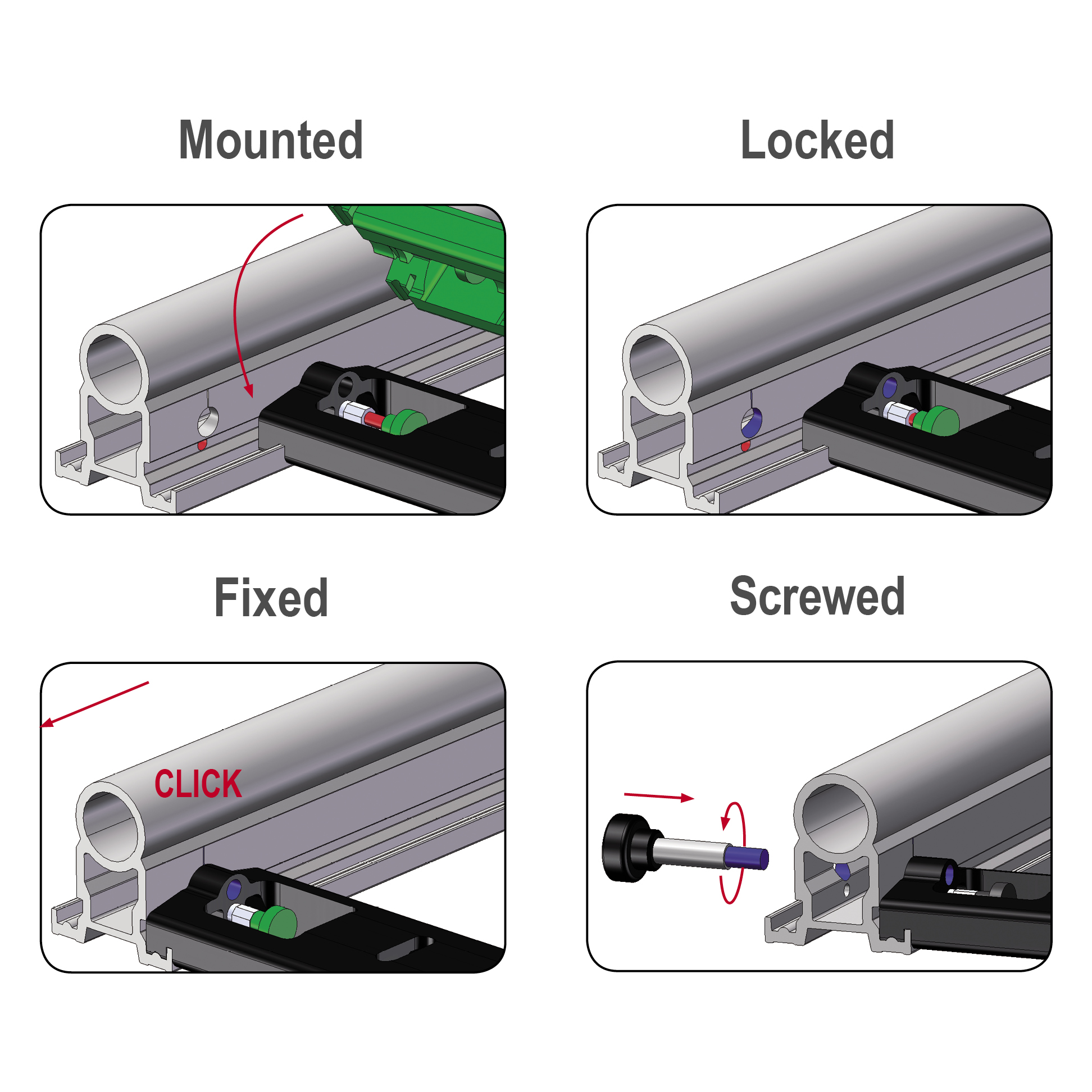

4 Ways of fixing the MonoTracks sleepers
Mounted: The sleepers are simply mounted, the tube are held in position and the dolly width is determined
Locked: A spring locks the sleepers to the MonoTrack tube and allows the assembly to be carried.
Fixed: The locked sleepers are fixed onto the MonoTrack tubes. The tensioning devices can be mounted
Screwed down: When using heavy loads (cranes…) the sleepers can be screwed tightly to hard mount the track.

Straight MonoTracks Lengths
- 2 x 0,30m – Product Ref: PRA600
- 2 x 0,5m – Product Ref: PRA610
- 2 x 1m – Product Ref: PRA620
- 2 x 2m – Product Ref: PRA630
- 2 x 3m – Product Ref: PRA640
- 2 x 4m – Product Ref: PRA650

Sleepers Lengths
- Minitrack – Track Width: 320mm Product Ref: PRA300
- Narrow 4 wheels KGSD Bazooka – Track Width: 364mm Product Ref: PRA450
- Narrow PeeWee – Track Width: 407mm Product Ref: PRA310
- Standard – Track Width: 620mm Product Ref: PRA320
- Standard Fisher 10 – Track Width: 629mm Product Ref: PRA330
- Wide track Hybrid – Track Width: 775mm Product Ref: PRA340
- Crab PeeWee – Track Width: 800mm Product Ref: PRA350
- Crab PeeWee IV – Track Width: 805mm Product Ref: PRA360
- Cranes – Track Width: 880mm Product Ref: PRA370
- Crab Fisher 10 – Track Width: 933mm Product Ref: PRA380
- Cranes – Track Width: 1000mm Product Ref: PRA390
- Wide Crab Hybrid – Track Width: 1045mm Product Ref: PRA400
- Technocranes – Track Width: 1450mm Product Ref: PRA410
Accessories

Coupling
Product Ref: PRA530

Adjustable Coupling Straight MonoTracks
Product Ref: PRA500

Joiner
Product Ref: PRA520

MonoTracks Screws
Product Ref: PRA540

Tilting Starter Ramp
- 2 x Tilting Starter Ramp Short – Product Ref: PRA260
- 2 x Tilting Starter Ramp Long – Product Ref: PRA270

MonoTrack to Straight Tracks Adapters
- MonoTrack to Tracks Adapter (male & female) – Product Ref: PRA550

Removable Protection Profile
- 0,5m – Product Ref: CRA450
- 1m – Product Ref: CRA451
- 1,5m – Product Ref: CRA452
- 2m – Product Ref: CRA453
- 3m – Product Ref: CRA454
- 4m – Product Ref: CRA455
